Welded Wire Mesh

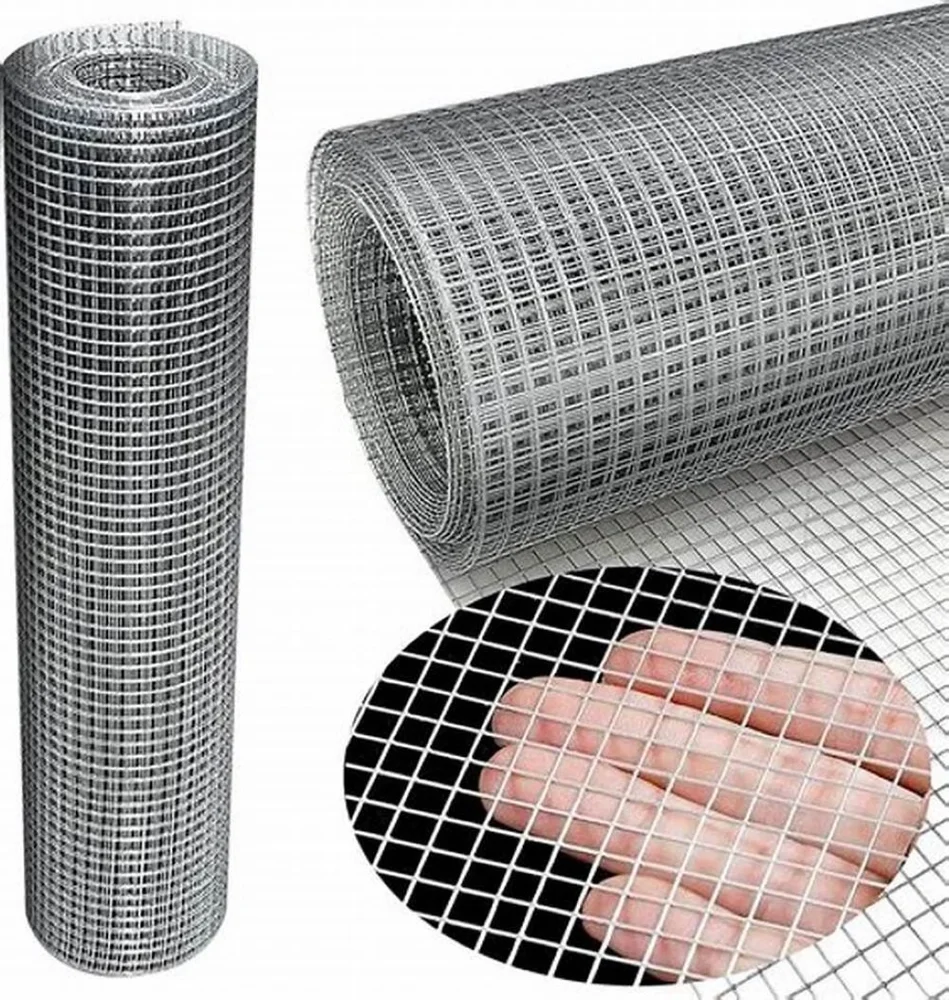

WELDED WIRE MESH is made of high quality, generally HardDrawn Mild Steel Wire, Hot Dipped Galvanised Steel Wire or Stainless Steel Wire through automatic process and sophisticated welding technique, laid horizontally and vertically, individually welded at every intersection. The end product is level and flat with sturdy structure. Welded wire mesh is extensively used in defense industry, agriculture, infrastructure, concrete reinforcement transportation, fencing, and mining.
Specifications:
| MESH | WIRE DIA | ||
|---|---|---|---|
| INCH | MM | MM | |
| 1/2 x 1/2 | 12.5mm x 12.5mm | 1 mm TO 1.6 mm | |
| 3/4 x 3/4 | 20 mm x 20 mm | 1 mm TO 3 mm | |
| 1 x 1 | 25 mm x 25 mm | 1 mm TO 3 mm | |
| 1 x 2 | 25 mm x 50 mm | 2 mm TO 5 mm | |
| 1 x 3 | 25 mm x 75 mm | 2 mm TO 6 mm | |
| 2 x 2 | 50 mm x 50 mm | 1.3 mm TO 5 mm | |
| 3 x 3 | 75 mm x 75 mm | 1.3 mm TO 6 mm | |
| 4 x 2 | 100 mm x 50 mm | 2 mm TO 8 mm | |
| 4 x 4 | 100 mm x 100 mm | 2 mm TO 8 mm | |
| 6 x 6 | 150 mm x 150 mm | 3 mm TO 12 mm | |
| 8 x 8 | 200 mm x 200 mm | 3 mm TO 12 mm | |
| 10 x 10 | 250 mm x 250 mm | 3 mm TO 12 mm | |
Benefits:
Structural Strength & Durability
- High Tensile Strength – WWM offers better load distribution, making structures more durable.
- Corrosion Resistance – Available in galvanized and stainless steel variants to prevent rusting.
- Crack Resistance – Reduces shrinkage and thermal cracks in concrete applications.
Faster and Cost-Effective Construction
- Easy Installation – Pre-fabricated meshes reduce labor and on-site work.
- Saves Time – Eliminates manual bar bending and tying, leading to faster project completion..
- Reduces Material Waste – Comes in pre-cut panels or rolls, minimizing material wastage.
Safety & Quality Control
- Uniform Grid Spacing – Ensures consistent reinforcement and better load distribution.
- Fire Resistanc – Steel mesh improves fire safety in reinforced structures.
- Customizable Sizes – Can be tailored to project-specific needs.
Environmentally Friendly
- 100% Recyclable – Made from steel, making it a sustainable choice.
- Reduces Carbon Footprint – Optimized steel usage lowers overall environmental impact.
Applications:
1. Reinforcement in Concrete Structures

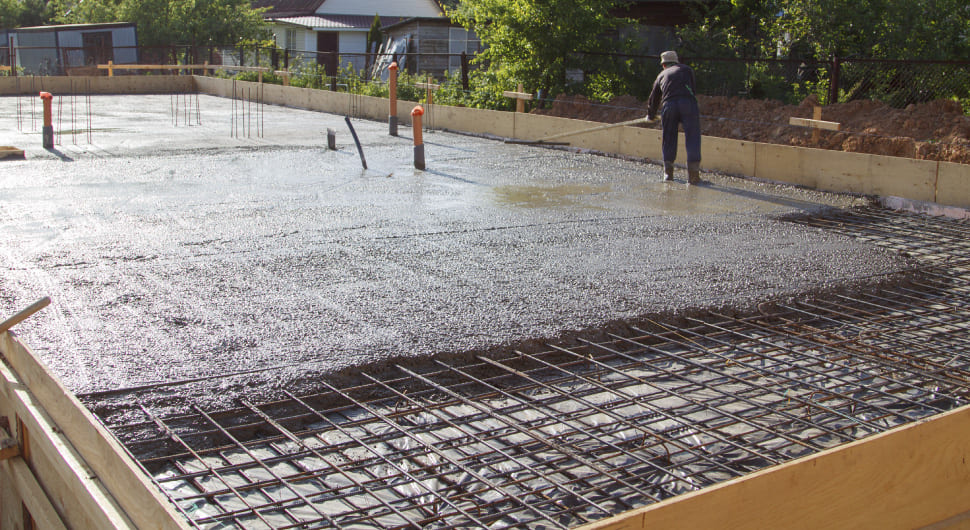

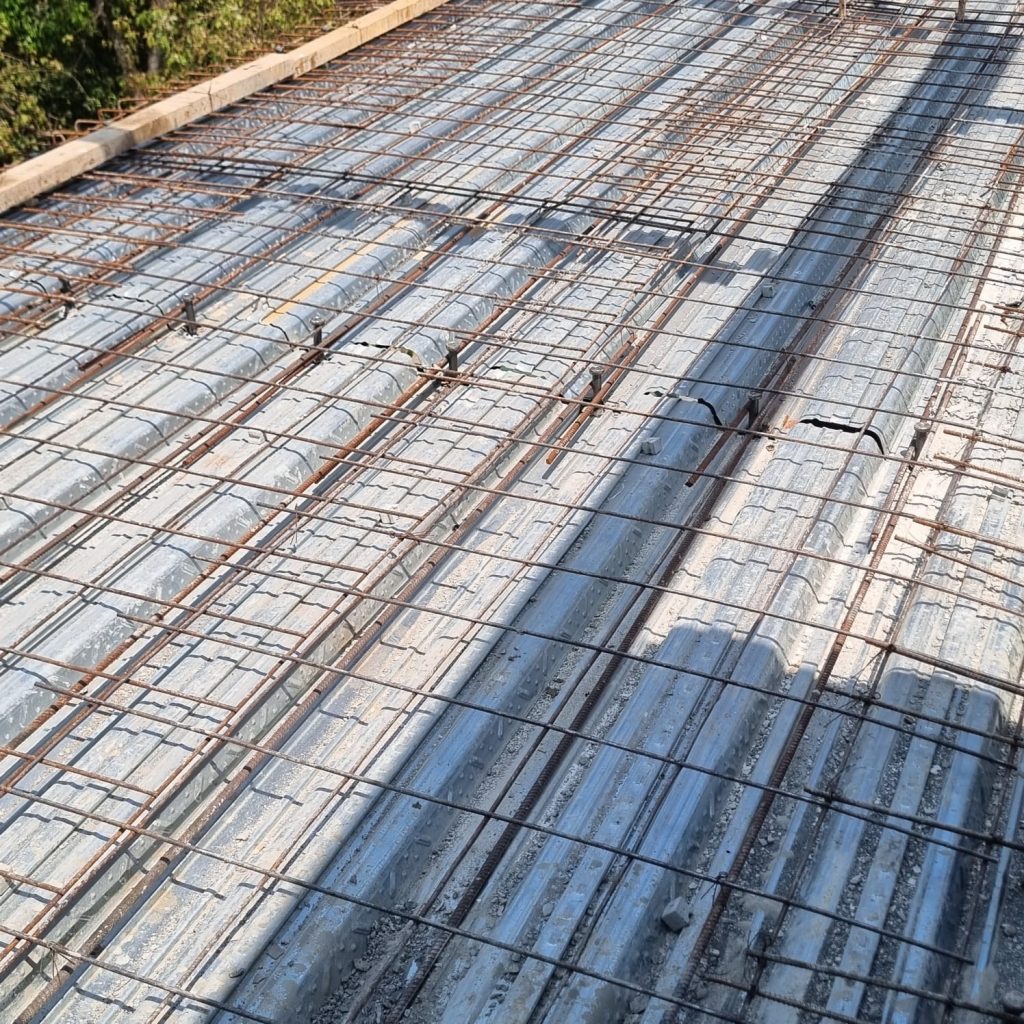

- Slabs & Floors – Provides reinforcement for concrete slabs, reducing cracks.
- Retaining Walls – Increases stability and load-bearing capacity.
- Precast Concrete Elements – Used in precast walls, beams, and panels for additional strength.
2. Infrastructure Development
- Roads & Highways – Strengthens asphalt pavements and reduces cracks.

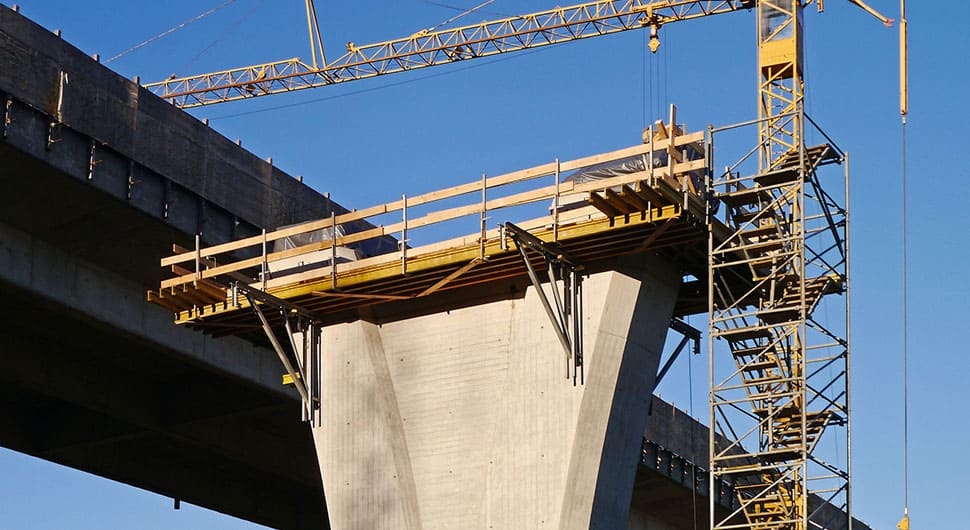

- Bridge Decking – Used in concrete bridge decks for reinforcement.
- Tunnel Linings – Provides structural support in underground tunnels
3. Industrial & Commercial Applications
- Factories & Warehouses – Reinforces concrete flooring for heavy load-bearing capacity.

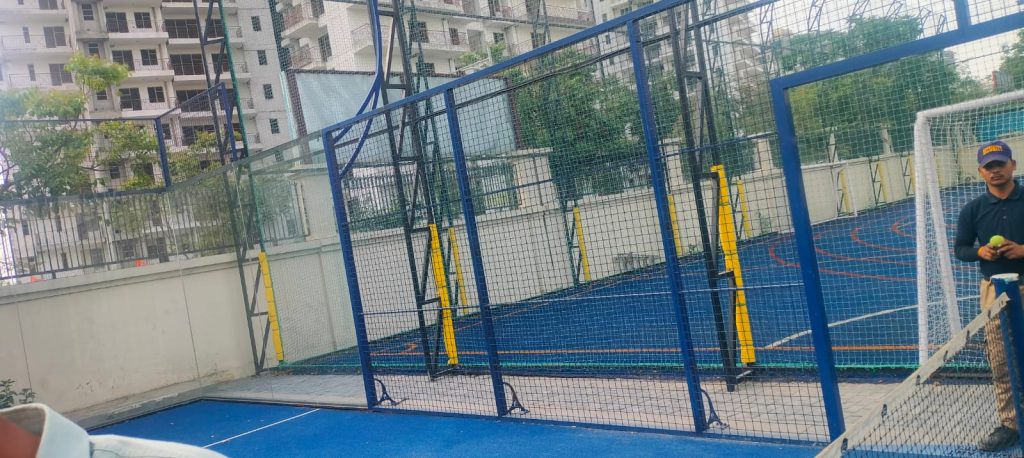

- Security Fencing – Used for boundary walls, prisons, and restricted areas
- Storage Racks & Partitions – Forms strong partitions in industrial warehouses
4. Residential & Architectural Uses
- Plaster Reinforcement – Used in walls to prevent cracks and improve durability.
- Gabion Walls – Provides aesthetic and functional retaining walls.
- Balcony & Staircase Railings – Used for safety in residential and commercial spaces
5. Slope Protection

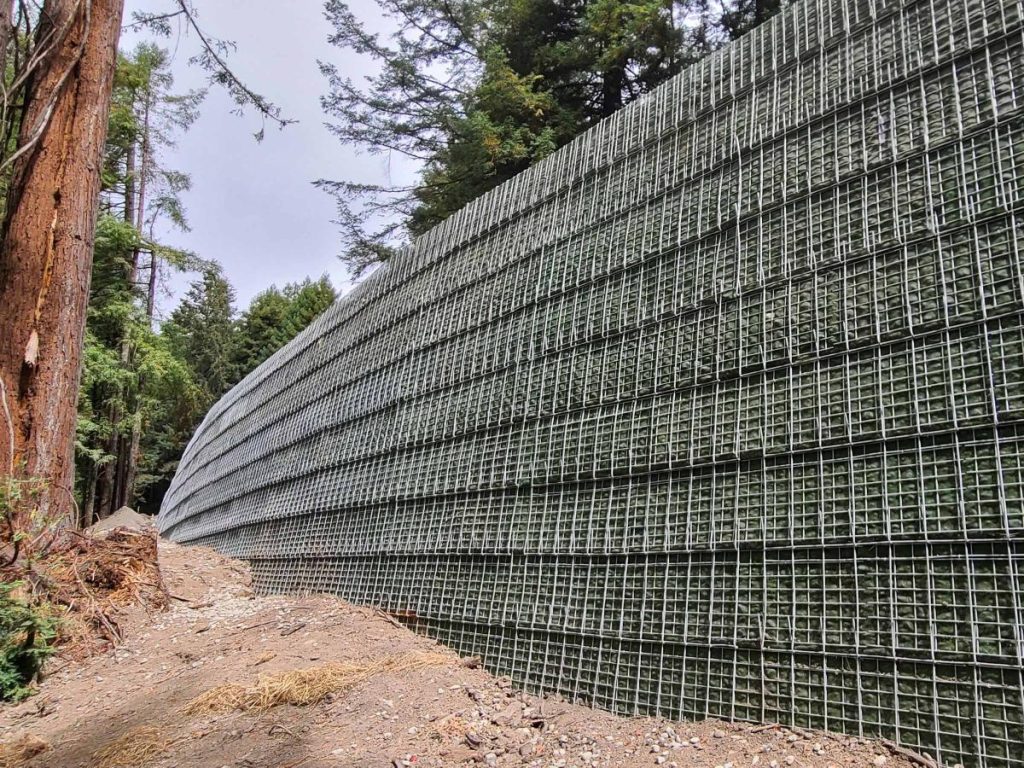

- Highway and Railway Embankments – Welded wire mesh is installed on road and railway slopes to prevent soil slippage and protect against landslides.
- River Banks and Canal Slopes – To prevent erosion caused by water flow, welded wire mesh is used along with stone pitching or vegetation.
- Hilly Areas and Cut Slopes – After hillside cutting, welded wire mesh is applied to stabilize the slope and control rockfall and soil erosion.
5. Warehouse Flooring
- Heavy Load Storage Areas – In sections where pallet racks or heavy goods are stored, welded wire mesh is embedded in the concrete floor to provide reinforcement and prevent cracking under concentrated loads.
- Forklift & Equipment Pathways – In aisles and driveways where forklifts and trolleys operate frequently, welded wire mesh reinforcement helps the floor withstand dynamic and impact loads, increasing durability.
- Cold Storage & Industrial Warehouses – In temperature-controlled warehouses, floors are prone to shrinkage and thermal cracking. Welded wire mesh reinforcement ensures structural stability and reduces cracking due to temperature fluctuations.
