Welded Wire Reinforcement Mesh For Construction(WWR)

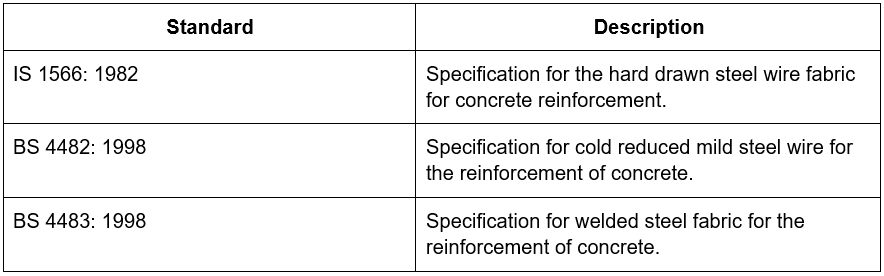

Specification

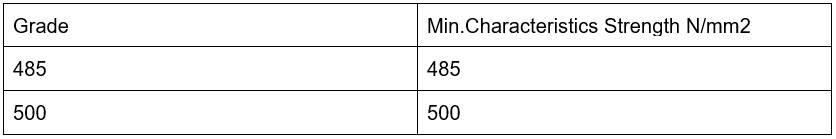

Characteristic Strength
BS 4482: 1998 and 4483: 1998 stipulate the minimum requirement for characteristic yield strength of welded fabric.

Description

We are a leading manufacturer of reinforcing mesh, as well as a supplier of concrete reinforcing wire products. The reinforcement is recognized in the concrete reinforcement market with a reputation for quality products, as well as for a highly professional and superior service.

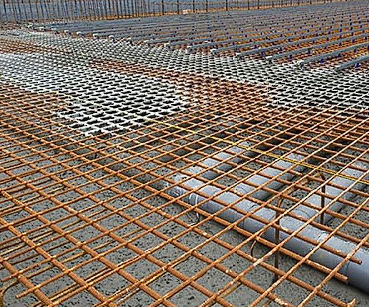

The Welded Wire Reinforcement Mesh is a custom made product as per the project requirement with variable dimensions and is used for structural concrete applications, replacing traditional steel rebar reinforcement. The main features of the engineered welded wire reinforcement are: less steel area for the same resistance, 3 to 4times faster installation and ensures full compliance with the design during installation.

Fusion Weld
Pressure combined with heat fuses the parent material to form the weld and can withstand shear strength of 240 Mpa and confirms to ASTM (American Society for Testing Materials) standards.lt resist higher shear load since no foreign material is used in the welding process.

The many benefits of the structural WWR There are several benefits over traditional rebar installation such as :
   •  WWR is made from higher yield strength steel, up to 80 Ksi compared to regular rebar at 60 Ksi,offering the possibility to reduce the steel content by as much as 27%.
   •  WWR is easier and faster to install with smaller crews compared to individual rebar placing and hand tying.
   •  Loose large rebar replaced by smaller wire closer, welded together and equally-spaced offering better crack control, thus improving quality of concrete products.
   •  WWR ensures proper positioning in concrete forms as required in the drawings with quick and easy quality control inspection.
   •  WWR can be bent and rolled to fit your concrete projects.
   •  Reduced time schedule, less labor, less steel content, less transportation and great quality concrete products.
